Maintenance and Calibration for the 7500 Real Time PCR System

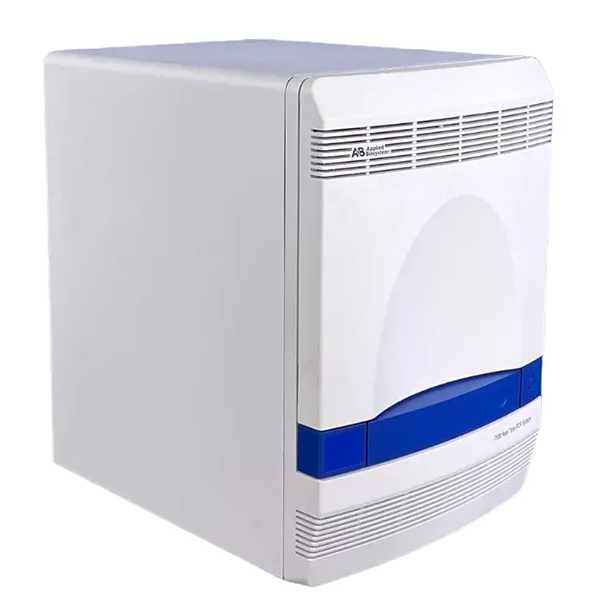

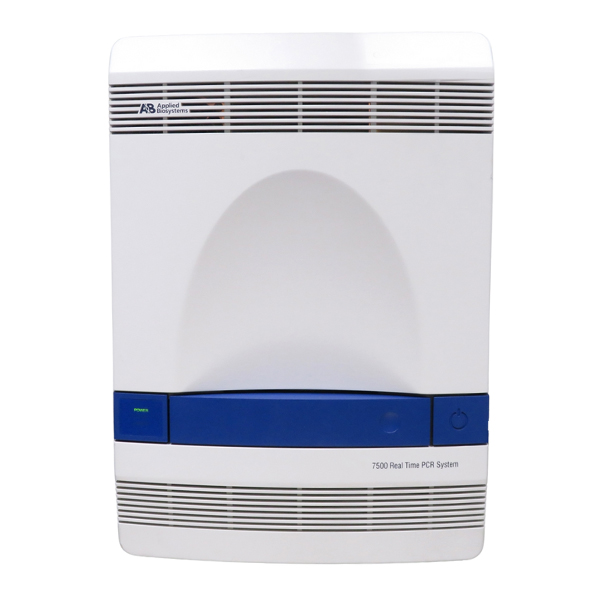

The 7500 Real Time PCR System from Applied Biosystems is one of the most popular real time PCR platforms used in laboratories for gene analysis, infectious disease diagnosis, gene expression research, and nucleic acid quantification.

This system is commonly known as the ABI 7500 Real Time PCR System, Applied Biosystems 7500 Real Time PCR System, 7500 Fast Real Time PCR System, or 7500 Fast DX Real-Time PCR Instrument. It is renowned for its high sensitivity, fast performance, and accurate real-time data analysis.

However, to maintain optimal performance, periodic maintenance and calibration are essential. These procedures ensure the 7500 Real Time PCR System operates stably, minimizes errors, and delivers reliable experimental results in the lab.

Why Is Maintenance Necessary for the 7500 PCR Machine?

The 7500 Real Time PCR System runs continuous thermal cycles with rapid temperature changes and features a complex optical system that includes a halogen lamp, excitation filters, and a CCD camera. Over time, several factors can affect its performance:

• Dust and contaminants accumulating on the thermal block, optics, or sample tray.
• Halogen lamp degradation after approximately 2000 hours of use.
• Fragmentation or insufficient storage space on the controlling computer’s hard drive and software.
• Temperature or optical drift caused by moving the instrument, replacing parts, or prolonged use.

You can refer to: Laboratory equipment repair services

Without regular maintenance, the ABI 7500 PCR, ABI 7500 Real Time PCR, or 7500 Fast Real Time PCR System Applied Biosystems may experience issues such as high background fluorescence, weak signals, unstable Ct values, and inaccurate quantification results.

Regular maintenance not only extends the lifespan of components and the entire 7500 PCR System but also reduces unexpected repair costs and ensures compliance with laboratory standards such as ISO or GLP. This is especially critical for the 7500 Fast DX Real-Time PCR Instrument used in diagnostic applications, where maintenance helps prevent any impact on clinical results.

Is Calibration Important for the Real Time PCR 7500 Applied Biosystems?

Calibration is an indispensable step that allows the Real Time PCR Applied Biosystems 7500 to accurately detect fluorescent signals from dyes such as FAM, VIC, ROX, and SYBR Green.

The 7500 Real Time PCR System uses multiple calibrations to correct background, map well positions (ROI), adjust optics, and handle dye spectra. If calibration is not performed correctly, the 7500 Real Time PCR Software or Applied Biosystems 7500 Real Time PCR System Software may analyze data inaccurately, leading to errors in multicomponenting or incorrect baseline settings.

According to the official Thermo Fisher (Applied Biosystems) maintenance guidelines, regular calibration helps the instrument achieve up to 99.7% accuracy when verified with an RNase P plate. For the ABI 7500 Fast Real Time PCR System, calibration is even more important because its fast run time (under 40 minutes) requires perfect thermal block uniformity and optics performance.

Many users search for the 7500 Fast Real Time PCR System Manual or Applied Biosystems 7500 Fast Real Time PCR System User Manual to perform calibration themselves. However, combining self-maintenance with professional service is highly recommended to avoid mistakes.

Maintenance, Thermal Verification, and Thermal Calibration for the 7500 PCR System

Maintenance for the 7500 PCR System is divided into two main categories: user-performed maintenance and thermal/optical calibration.
Recommended Maintenance Schedule (based on the manufacturer’s guide):

• Weekly: Check computer hard drive capacity, back up data, power cycle the computer for 30 seconds, and clean the instrument surface with a lint-free cloth (avoid organic solvents).
• Monthly: Inspect the halogen lamp, run background calibration, perform disk cleanup and defragmentation, and execute the instrument self-test.
• Every six months: Perform full ROI calibration, background calibration, optical calibration (especially important for the 7500 Fast Real Time PCR System), dye calibration, and RNase P instrument verification run.

Thermal Verification and Calibration:

The Peltier thermal block of the 7500 Real Time PCR must maintain high temperature accuracy (±0.25°C) and excellent uniformity across all wells. When the instrument is moved or temperature drift is suspected, verify ramp rate and uniformity. After replacing the halogen lamp or optical components, run the full calibration sequence in this order: ROI → Background → Optical (for 7500 Fast & 7500 Real Time PCR System) → Dye → Verification.

Main Calibration Steps:

ROI Calibration: Maps the position of each 96-well to ensure the CCD camera reads signals correctly.

Background Calibration: Measures the instrument’s inherent fluorescence background and detects contamination.

Optical Calibration: Corrects filter effects (applies to 7500/7500 Fast models).

Dye Calibration: Uses the 7500 Real Time PCR Systems Spectral Calibration Kit I or Kit II to calibrate specific dyes (FAM/SYBR, VIC/JOE, NED/TAMRA/ROX, Cy3, Cy5). You can prepare the plate yourself with TE buffer at pH 8.0.

Instrument Verification: Run the RNase P plate to confirm the system can reliably distinguish 5,000–10,000 genome equivalents.
If calibration fails, check whether the plate was properly centrifuged, the solution is evenly distributed, or the halogen lamp is worn out. Refer to the 7500 Fast Real-Time PCR System Troubleshooting section in the manual to resolve common issues such as memory corruption or low spectra.

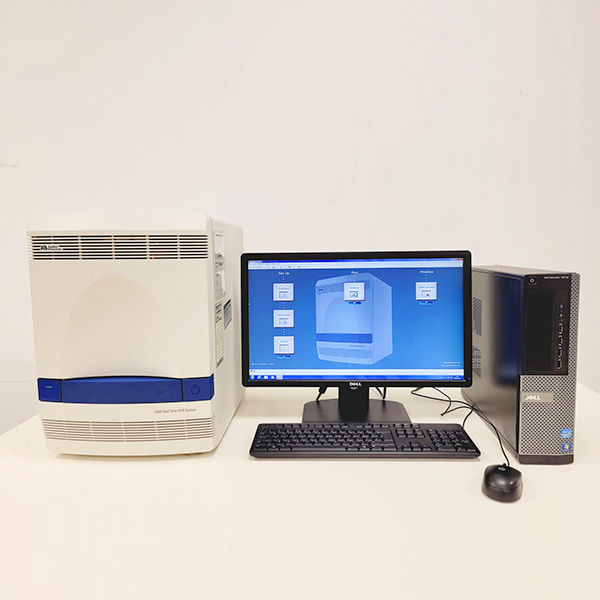

For software, users often download ABI Real Time PCR 7500 Software or update the 7500 Real Time PCR System Software, Applied Biosystems 7500 Fast Real Time PCR System Software. Always keep the latest version and update Windows to prevent conflicts.

The Importance of Maintenance and Warranty for the 7500 PCR Machine

Regular maintenance and calibration of the 7500 Real Time PCR System bring many practical benefits:

• Ensures high accuracy and reproducibility in experiments using Real Time PCR 7500, RT PCR 7500, and PCR 7500 Applied Biosystems.
• Reduces the risk of false positive or false negative results, which is especially critical for the 7500 Fast DX Real-Time PCR in diagnostic applications.
• Extends the instrument’s lifespan and saves costs on expensive replacements such as the halogen lamp or thermal block.
• Complies with Thermo Fisher manufacturer requirements, keeping the Applied Biosystems 7500 Real-Time PCR System under warranty or eligible for OQ/IPV Operational Qualification/Instrument Performance Verification service packages.
• Improves workflow efficiency: the ABI 7500 PCR Machine or Thermo Fisher 7500 Real Time PCR runs smoothly and reduces downtime.

Many laboratories search for 7500 Fast Real Time PCR System Price or Applied Biosystems 7500 Real Time PCR System Price when considering upgrades. However, investing in proper maintenance is often more cost-effective than purchasing a new system. For older instruments, professional deep maintenance from Thermo Fisher representatives or authorized centers includes comprehensive subsystem checks, internal cleaning, and full recalibration.

Maintenance and calibration of the 7500 Real Time PCR System form the core foundation for maximizing the potential of Applied Biosystems instruments. Establish a strict maintenance schedule, use the correct spectral calibration kits, and always refer to the official 7500 Real Time PCR System Manual. When you need expert support for troubleshooting, software issues, or part replacement, contact authorized service immediately to ensure your 7500 Real-Time PCR Instrument always performs at its best.

Investing time and resources in maintenance not only protects your equipment but also enhances the quality of research and diagnostics in your laboratory. If you are currently using a Real Time PCR System 7500, start reviewing your maintenance schedule today to avoid unnecessary problems.
