Maintenance and Calibration of Geneamp PCR System 9700

Maintenance and Calibration of the GeneAmp PCR System 9700

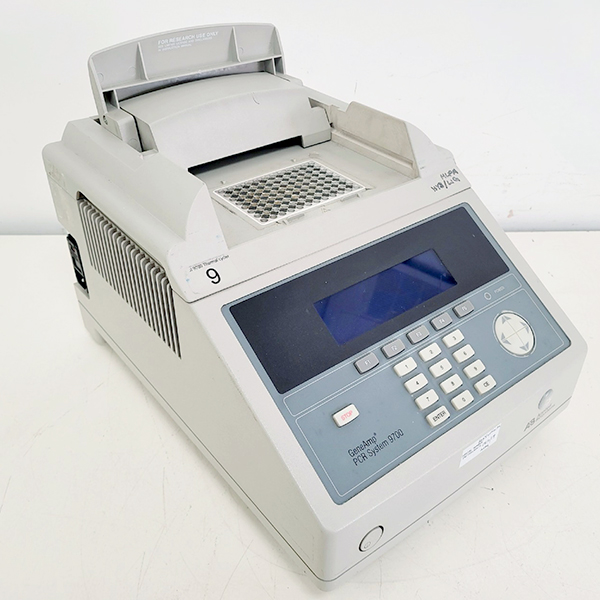

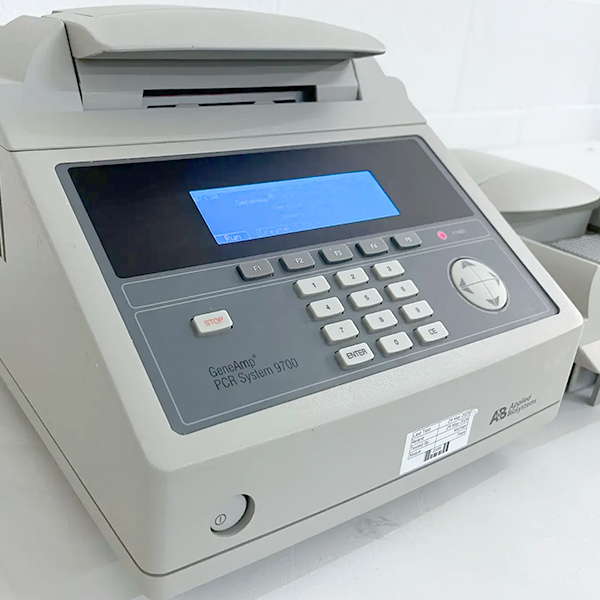

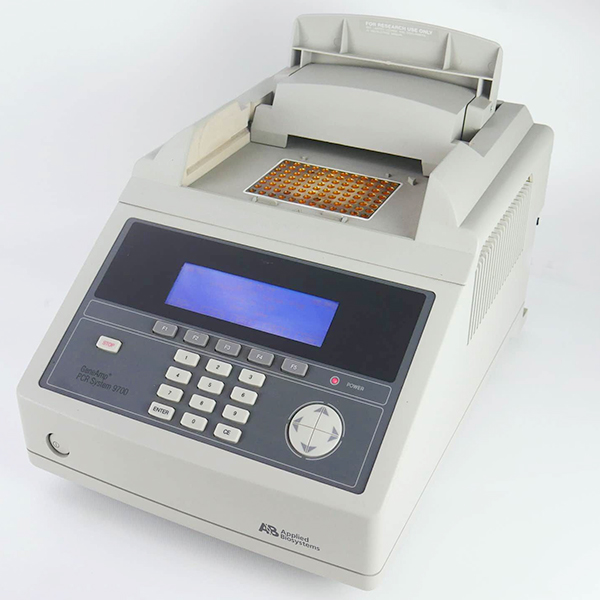

Ensuring optimal performance of laboratory equipment in molecular biology labs requires proper maintenance and calibration. Among classic thermal cyclers, the GeneAmp PCR System 9700 from Applied Biosystems remains one of the most trusted PCR instruments worldwide.

Known for its durability and precise temperature control, the GeneAmp PCR 9700, 9700 PCR System, and ABI GeneAmp PCR System 9700 continue to deliver reliable results in research, diagnostics, and clinical applications. Following the correct procedures helps the GeneAmp PCR System 9700 Thermal Cycler operate stably and enhances the reliability of PCR outcomes.

You can refer to: Laboratory equipment repair services

Why Maintain the PCR 9700 Machine?

PCR instruments such as the GeneAmp PCR System 9700 cycle repeatedly between high and low temperatures. This stresses components like the sample block, heated cover, and temperature sensors, leading to wear, dust accumulation, or DNA contamination from previous runs. Without regular maintenance, the Applied Biosystems 9700 PCR, Applied Biosystems PCR 9700, and Applied Biosystems PCR System 9700 can lose temperature accuracy. This results in failed PCR reactions, non-specific products, or reduced amplification efficiency.

According to Applied Biosystems guidelines, users should perform routine maintenance every 3 months for high-usage instruments and every 6 months for lower-usage ones. The GeneAmp PCR System 9700 Service Manual emphasizes that dust or residue in sample wells or on the heated cover can cause cross-contamination between samples, severely impacting experimental results. Additionally, the Peltier cooling system requires periodic checks to prevent block errors or incorrect ramp rates.

Maintenance of the PCR 9700 Applied Biosystems, 9700 PCR, and ABI 9700 PCR also extends equipment lifespan, reduces unexpected repair costs, and ensures safe operation. Many laboratories using the ABI PCR 9700 or 9700 PCR Machine have reported that skipping maintenance leads to “Fatal Block Error” messages or uneven PCR results across wells.

Is Calibration of the PCR 9700 Machine Important?

Calibration of a PCR instrument is extremely important because PCR reactions depend entirely on precise temperature control. In the GeneAmp PCR System 9700, DNA denaturation typically occurs at 94–95°C, primer annealing at 50–65°C, and extension at 72°C. Even a 1°C deviation can alter results completely — primers may fail to anneal correctly, Taq polymerase activity may decrease, or products may become non-specific.

Calibration of the Applied Biosystems GeneAmp PCR System 9700 ensures the instrument meets manufacturer specifications: temperature accuracy within ±0.75°C and temperature uniformity better than 1°C across the entire sample block. Without regular calibration, the ABI PCR 9700 can produce unreliable data, especially in high-sensitivity applications such as mutation detection, infectious disease diagnostics, or genetic research. Following the GeneAmp PCR System 9700 Manual, calibration confirms that the machine continues to meet factory standards and helps avoid wasted time and reagents. In professional labs, calibration is a mandatory requirement for maintaining ISO or GLP compliance.

Maintenance, Temperature Verification, and Calibration for the PCR 9700

Maintenance and temperature verification for the GeneAmp PCR System 9700 consist of two main parts: routine cleaning and specialized temperature tests.

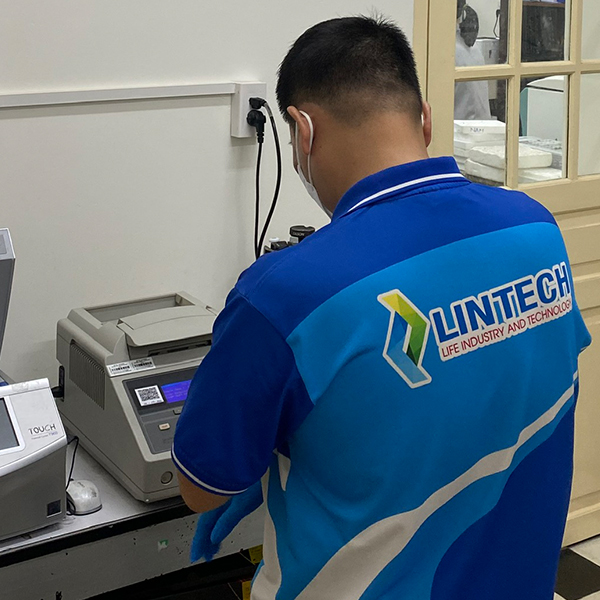

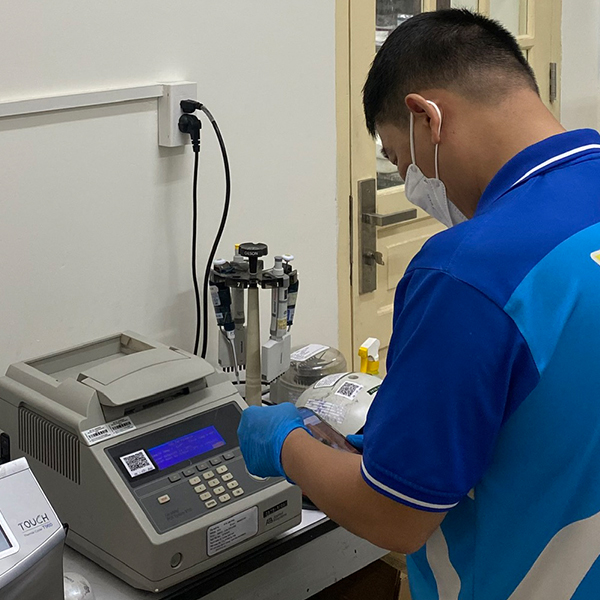

First, clean the sample block and heated cover. Power off the instrument and allow it to cool for 10 to 30 minutes depending on the component. Use cotton swabs soaked in 100% isopropanol to thoroughly clean the sample wells. If DNA contamination is suspected, use a 10% bleach solution, followed by rinsing with distilled water and complete drying. For the heated cover of the Applied Biosystems 9700 PCR, raise the lever, clean the underside with isopropanol or bleach as needed, then wipe dry.

Next, perform temperature checks using the appropriate Temperature Verification Kit for your block (for example, P/N 4317939 for the 0.2 mL 96-well block). Run the Calibration Verification Test through the Diagnostics menu on the GeneAmp PCR System 9700: select TmpVer, then Temp. Place the probe in well A6 after applying a thin layer of mineral oil, close the heated cover, and follow the on-screen instructions. The instrument ramps to 85°C and then 45°C. Enter the readings from the digital thermometer. The system displays “Calibration is Good” if the values fall within ±0.75°C.

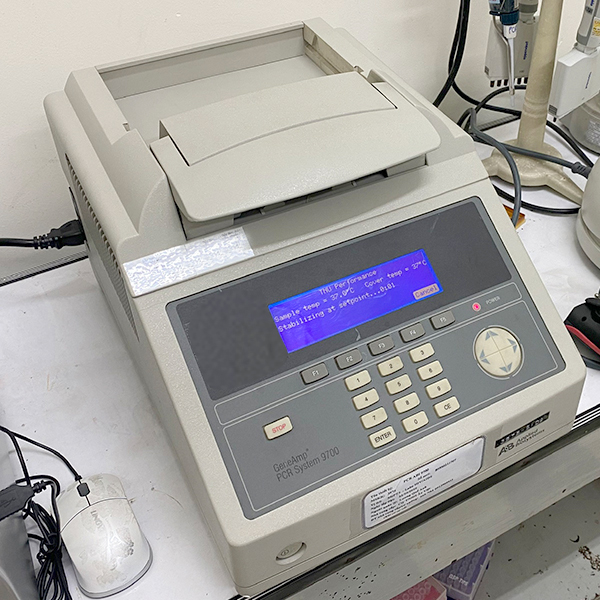

Quarterly, also run the Temperature Non-Uniformity Test (TNU) to verify temperature uniformity. Clean wells in rows A, C, F, and H, place the probe according to the prompts (starting from A1 and moving to other positions), and test at 94°C and 37°C. The difference between the highest and lowest temperatures must not exceed 1°C. If the PCR 9700 or PCR System 9700 fails these tests, contact a qualified service provider for recalibration or sensor replacement. All procedures are described in detail in the GeneAmp PCR System 9700 Service Manual and help maintain stable performance of the 9700 PCR System ABI.

The Significance of Maintenance and Calibration of the PCR 9700

The value of maintaining and calibrating the GeneAmp PCR System 9700 lies in ensuring scientific accuracy and long-term cost efficiency. For a high-end instrument like the Applied Biosystems PCR 9700, proper maintenance delivers consistent PCR results, reduces the need to repeat experiments, and saves valuable time and reagents.

In genetic research and medical diagnostics worldwide, temperature accuracy directly determines data quality, particularly for sensitive techniques such as real-time PCR. Regular maintenance also detects potential issues early, prevents lab downtime, and significantly extends the instrument’s service life.

Adhering to the GeneAmp PCR System 9700 Manual supports internal quality control and helps meet standards such as ISO 17025. For users of the ABI 9700 PCR or Applied Biosystems 9700 PCR, this is the best way to protect the initial investment and ensure safe, reliable long-term operation.
Therefore, maintenance and calibration are indispensable steps for the GeneAmp PCR System 9700, GeneAmp PCR 9700, 9700 PCR System ABI, and Applied Biosystems GeneAmp PCR System 9700. Performing cleaning, temperature verification, and calibration correctly according to the manufacturer’s instructions will optimize experimental results and contribute to advancements in molecular biology.
