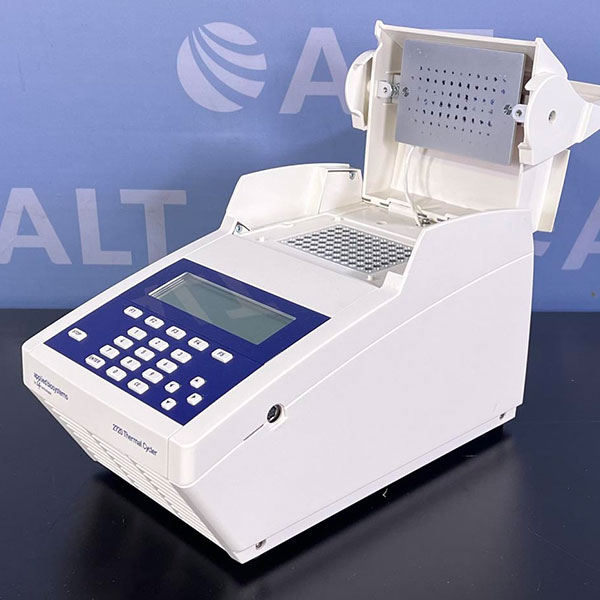

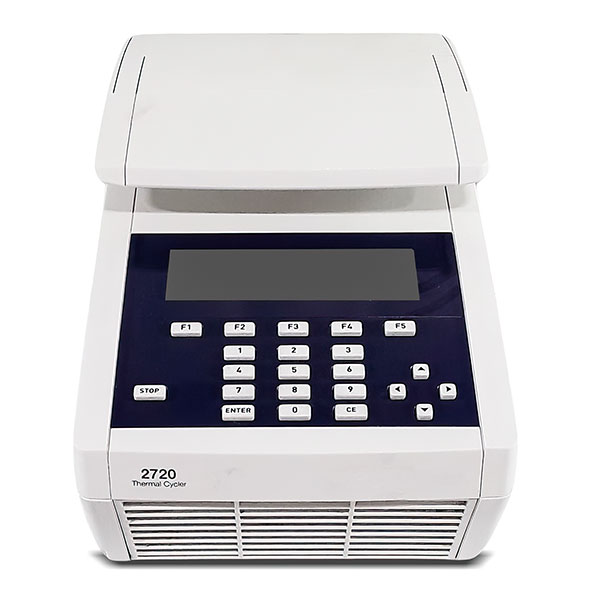

Maintenance and Calibration of the PCR 2720 Machine

he PCR 2720 is a specialized instrument in the field of molecular biology designed to perform polymerase chain reactions with high accuracy and efficiency. Maintenance and calibration of the PCR 2720 machine play a critical role in sustaining the device’s optimal performance throughout its long-term operation.

Understanding the maintenance and calibration of the PCR 2720 helps medical diagnostic laboratories, genetic testing facilities, and scientific research institutions ensure reliable and reproducible experimental results. Due to its high usage frequency in modern laboratory environments, the PCR 2720 requires regular maintenance procedures to prevent temperature deviations and component failures.

Why Is Maintenance of the PCR 2720 Machine Necessary?

Maintenance of the PCR 2720 machine is an essential activity because the instrument operates continuously with rapid temperature cycles ranging from 4°C to 99°C. Over time, dust and debris can accumulate on the thermal block and cooling fans, reducing heat transfer efficiency and leading to unstable PCR results.

You can refer to: Laboratory equipment repair services

Without scheduled maintenance, the machine is prone to display errors or slower heating and cooling rates compared to the original manufacturer specifications. Proper maintenance helps extend the equipment’s lifespan for many years while minimizing the risk and cost of unexpected repairs.

In laboratory environments characterized by high humidity and frequent exposure to fine dust, cleaning the thermal block, inspecting power cables, and replacing worn components such as gasket seals are necessary to prevent contamination of experimental samples.

Many laboratories have reported that after performing preventive maintenance every six months, the performance of the PCR 2720 improves significantly, with reaction success rates increasing by 15 to 20 percent. Maintenance also enhances user safety by detecting early issues such as unstable voltage or faulty temperature sensors before they lead to major failures.

Is Calibration of the PCR 2720 Machine Important?

Calibration of the PCR 2720 machine is extremely important because temperature is the decisive factor determining the success or failure of the entire PCR reaction. Even a small deviation of approximately 0.5°C can cause primers to fail to anneal correctly to the target sequence or lead to inactivation of the Taq polymerase enzyme, resulting in weak or absent amplification products.

Periodic calibration confirms that the thermal block of the PCR 2720 maintains accuracy according to the manufacturer’s standards, typically ±0.25°C across the entire surface. In medical diagnostic applications — such as SARS-CoV-2 virus detection or cancer genetic testing — non-compliant calibration can produce false negative or false positive results, with serious consequences for patients.

Laboratories operating under ISO 17025 accreditation are required to perform annual calibration using traceable reference instruments to ensure the legal validity and traceability of their data.

Calibration also enables early detection of degradation in Pt100 sensors or PID control modules, allowing timely adjustments before they affect large-scale experiments. Many research units in Vietnam that have implemented in-depth calibration have observed a substantial improvement in the repeatability and consistency of experimental results after each verification.

Maintenance, Temperature Verification, and Thermal Calibration

Maintenance, temperature verification, and thermal calibration of the PCR 2720 machine involve multiple specialized steps to ensure the thermal block operates uniformly and with high precision.

The process begins with cleaning the aluminum block surface using non-corrosive specialized solutions. A multi-point temperature measurement device is then used to verify temperatures at a minimum of nine different positions across the block. This temperature verification helps detect uneven hot or cold zones, which are often caused by dust buildup or mechanical wear.

Thermal calibration follows, utilizing certified traceable sensors to adjust the software parameters so that the actual temperature precisely matches the set value.

During this procedure, technicians verify the ramp rate — the speed of temperature change per second — to ensure the PCR 2720 achieves the required performance (typically up to the manufacturer’s maximum block ramp rate of approximately 2.7°C/sec). In addition, maintenance includes inspecting the cooling fan system, replacing lubricating oil if necessary, and updating the latest firmware from the manufacturer.

Upon completion of thermal calibration, technicians print a detailed measurement report accompanied by actual temperature graphs for record-keeping and traceability. The entire process usually takes 4 to 6 hours, depending on the condition of the instrument, and should be performed by a reputable, certified service provider to avoid damaging the hardware.

The Significance of Maintenance and Warranty for the PCR 2720 Machine

The significance of maintenance and warranty for the PCR 2720 machine lies in delivering long-term peace of mind to users while optimizing operational costs.

Regular maintenance keeps the machine in a constant state of readiness, reduces downtime to a minimum, and helps preserve the initial investment value. The manufacturer’s warranty typically lasts from 1 to 3 years but remains valid only when the instrument is serviced according to schedule by an authorized service center.

Combining proper maintenance with the warranty creates a comprehensive protection layer, including 24/7 technical support, free component replacement, and complimentary periodic inspections during the warranty period. Correct maintenance practices also contribute to environmental protection by reducing electronic waste generated from prematurely failing equipment.
