Maintenance and Calibration of Proflex PCR System

Standard Maintenance and Calibration of Proflex PCR System

Maintenance and calibration of the PCR machine is an essential procedure to maintain the optimal performance of the Polymerase Chain Reaction gene amplification device.

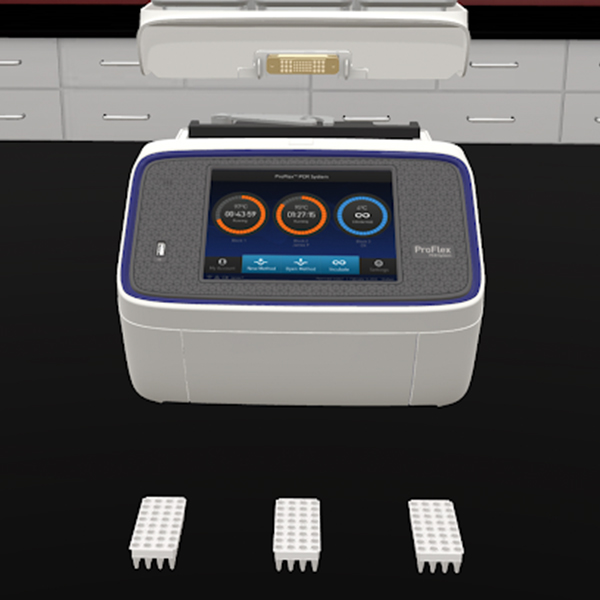

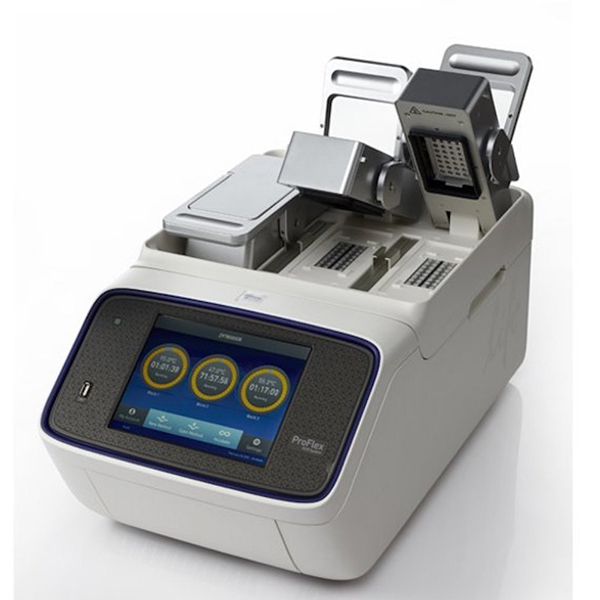

Among modern PCR systems, the Applied Biosystems Proflex PCR System stands out with its flexible VeriFlex technology, rapid block exchange capability, and precise gradient PCR support.

Performing the correct procedure not only extends the lifespan of the instrument but also ensures reliable PCR results, saves costs, and complies with laboratory standards.

Why Proflex PCR System Maintenance Is Necessary

PCR instruments like the Proflex PCR System operate continuously at high temperatures with rapid cooling cycles, leading to wear and tear of components over time. Dust, residual amplified DNA, or degradation of the Peltier module can all reduce temperature accuracy, resulting in non-reproducible PCR results or complete reaction failure.

Regular maintenance of the Proflex PCR System helps detect early issues such as slow cooling rates, temperature differences between wells, or hardware errors. According to the Proflex PCR System User Guide, users should perform the Self Verification Test periodically or whenever abnormal errors occur. This test takes only about 10 minutes but checks the entire thermal block, heated lid, and other components, helping to avoid disruption to research work.

In addition, the humid laboratory environment or frequent exposure to biological samples increases the risk of contamination. Without proper maintenance, the Applied Biosystems Proflex PCR System can suffer from corrosion, leading to higher repair costs. Maintenance also helps maintain the ramp rate of up to 6°C per second, which is a standout advantage of the Thermo Fisher Proflex PCR System compared to older machines.

Is Proflex PCR System Calibration Important?

PCR instrument calibration is an indispensable step to ensure temperature accuracy of ±0.25°C and uniformity of <0.5°C — the two critical specifications of the Proflex PCR System. Inaccurate temperature directly affects each PCR step: DNA denaturation at 95°C, primer annealing at 50–65°C, or new strand extension at 72°C. Even a small deviation can cause non-specific products, reduced amplification efficiency, or complete reaction failure.

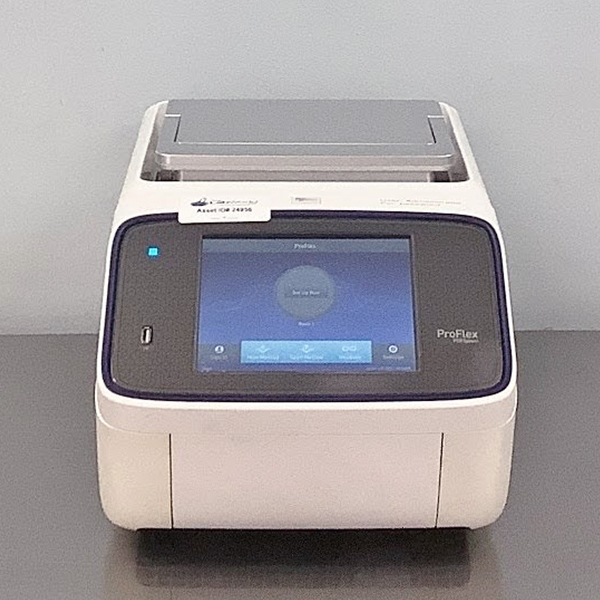

Especially with the Proflex PCR System Gradient PCR and Proflex PCR Gradient, VeriFlex technology allows independent temperature zones to be set within the same run. Without calibration, this gradient will lose accuracy, compromising PCR condition optimization.

Many laboratories require annual calibration or calibration after every 250 runs to comply with ISO and GLP regulations.

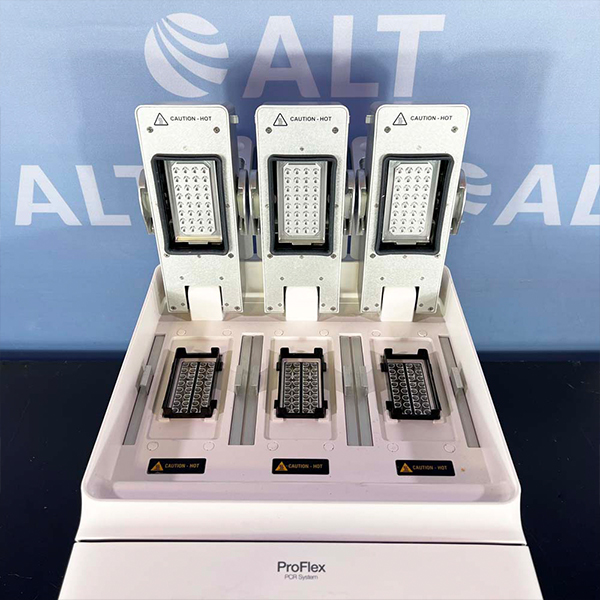

The Proflex 96-Well PCR System requires periodic verification using the Temperature Verification Kit (Cat. No. 4377669).

When the actual temperature does not match the set value, the system will issue a warning and suggest running the Temperature Verification Test. This is exactly why calibration is important — it directly determines the quality of scientific data and the reliability of experimental results.

Maintenance, Temperature Verification, and Calibration

Maintenance of the Applied Biosystems Proflex PCR System includes both cleaning and in-depth inspection. Below is a detailed guide based on the Proflex PCR System Manual:

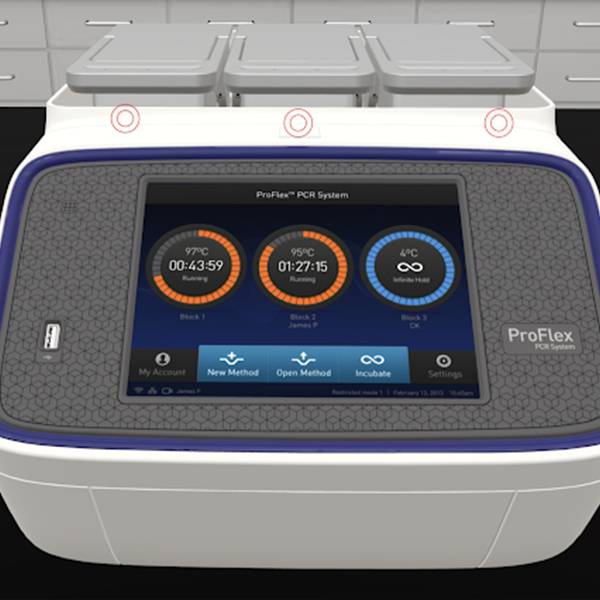

Routine cleaning: Disconnect the power supply and allow the instrument to cool completely. Clean the touchscreen with a specialized LCD cleaning solution. Clean the sample wells monthly using cotton swabs moistened with isopropanol.

In case of biological contamination, use a 1:10 bleach solution followed by rinsing with deionized water to prevent corrosion.

Heated lid cleaning: Wipe monthly with isopropanol. If amplified DNA residue is present, use mild bleach.

Fuse replacement: Use 10A, 250VAC Time Lag fuses when necessary.

Firmware update: Download from the Thermo Fisher website, copy to a USB drive, and perform via the Maintenance & Services menu.

Temperature Verification and Calibration:

Run the Self Verification Test by going to Home → Settings → Maintenance & Services.

Perform the Block Verification Test using the Temperature Verification Kit to check the Heated Cover, Temperature Verification, or Temperature Non-Uniformity.

If the results do not meet specifications, contact an authorized service provider for advanced calibration.

For the Proflex PCR System Gradient, checking temperature non-uniformity is particularly important to ensure uniform performance across independent temperature zones. The entire process is described in detail in the official Proflex PCR System User Guide from Thermo Fisher.

The Importance of Proflex PCR System Maintenance and Calibration

Maintaining and calibrating the Proflex PCR System brings many practical benefits:

Increased result reliability: Accurate temperature control leads to higher PCR success rates, reducing reagent and time wastage.

Long-term cost savings: Early detection of problems prevents major repairs. Although the initial Proflex PCR System price may be high, operating costs remain low thanks to its durability.

Compliance with standards: Supports laboratories in achieving ISO and GLP certification, especially in biomedical research, diagnostics, and forensic applications.

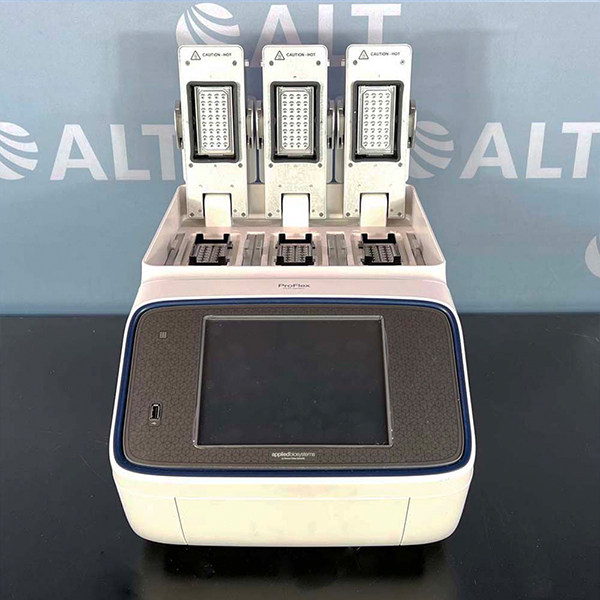

Optimized productivity: The ABI Proflex PCR System with its flexible interchangeable blocks (3×32-well, 2×96-well, 2×384-well, etc.) allows multiple experiments to run simultaneously. Proper maintenance maximizes the system’s capacity.

Safety and sustainability: Reduces the risk of cross-contamination and extends the instrument’s lifespan for many years.

In summary, PCR instrument maintenance and calibration is not only a technical responsibility but also the foundation for all high-quality research. If you are using the Proflex PCR, PCR Proflex, or any version of the Applied Biosystems Proflex PCR System, be sure to schedule regular maintenance according to the Proflex PCR System Manual and refer to the Proflex PCR System User Guide to achieve the best performance.
