Maintenance and Calibration of the Techne TC-PLUS PCR

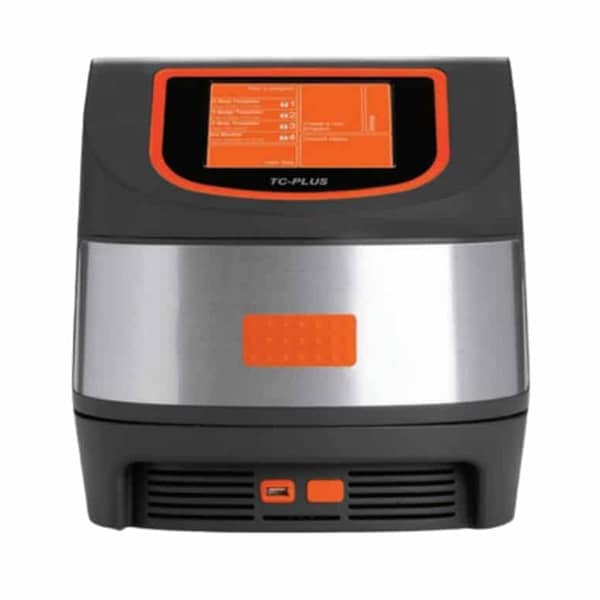

The Techne TC-PLUS PCR thermal cycler, distributed through the Cole-Parmer network, is an advanced gradient PCR system featuring a 5.7-inch color touchscreen, interchangeable heating blocks, and the ability to control up to nine additional units via USB. According to the official operating manual, the instrument operates over a temperature range of 4°C to 100°C, has a maximum heating rate of 5°C per second, a block temperature uniformity of less than ±0.3°C, and temperature accuracy of less than ±0.2°C.

To maintain these specifications over years of use, the TC-PLUS PCR thermal cycler must undergo routine maintenance and calibration according to established procedures. This article covers the essential steps, from daily cleaning to periodic temperature verification, based on the manufacturer’s documentation.

Why Is Regular Maintenance and Calibration of the TC-PLUS PCR Thermal Cycler Necessary?

The TC-PLUS specifications are published for an ambient temperature of 20°C. The manufacturer notes that performance may decrease if the room temperature falls outside the range of 10–30°C. In addition to environmental factors, prolonged operation can lead to the following issues:

• Dust and debris accumulating in the wells and on the heating block.
• Aging of thermal components.
• Gradual temperature sensor drift.

As a result, the actual temperature inside the reaction tubes may deviate from the programmed setpoint without the user noticing. This can raise concerns about the reliability of PCR results, particularly in quantitative PCR or applications involving the detection of low-concentration targets.

You may also be interested in: Laboratory Equipment Calibration

Maintenance keeps the instrument clean and operating reliably.

Calibration provides objective evidence that the actual temperature remains within acceptable limits. Without both, the risk of measurement errors increases.

Maintenance Tasks Users Can Perform Themselves

The TC-PLUS operating manual clearly outlines the maintenance procedures that users are permitted to perform:

Clean the instrument housing with a soft cloth moistened with water or ethanol. Do not immerse the instrument in solvents or use acetone or abrasive cleaning agents.

Clean the heating block with water, ethanol, or isopropanol. Decontamination can be performed using 2% Neutracon or 1% bleach. Consult the manufacturer before using any other decontamination method.

Always disconnect the power supply and allow the instrument to cool completely before cleaning.

Place the instrument in a well-ventilated location. Do not obstruct the air intake beneath the instrument or the ventilation openings on either side.

Use tubes and plates of the same height within a block. The heated lid automatically adjusts its applied pressure, so manual adjustment is not required.

Enable the temperature logging function to record the temperature profile of each run. These files can be viewed using Workbench software on a computer and are useful for laboratory quality control records.

Update the instrument software via USB according to the manufacturer’s instructions.

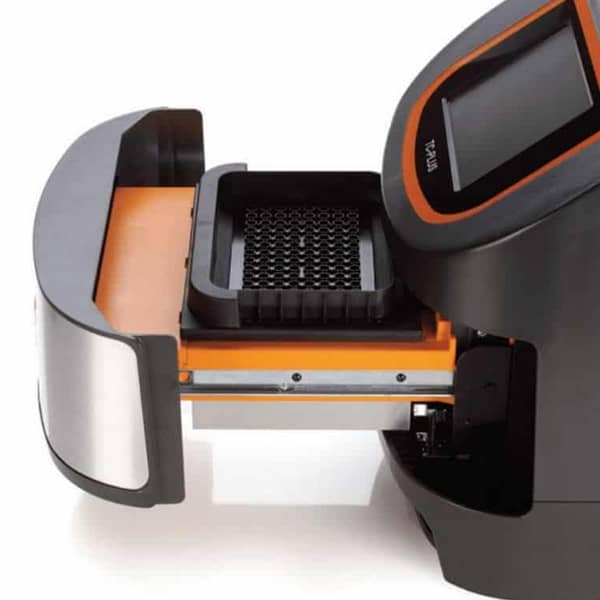

When replacing the block, disconnect the power supply and allow the instrument to cool. Remove the trim ring, take out the orange spacer, slide out the existing block, and install the replacement block by following the steps in reverse order.

Tasks Users Should Never Attempt Themselves

• Opening the instrument housing, which contains components that may carry hazardous voltages.
• Replacing fuses without the appropriate electrical qualifications.
• Performing high-voltage insulation testing with an AC power source; if such testing is required, use a DC source only where specified by the applicable procedure.

The manufacturer states that there are no user-serviceable parts inside the instrument.

Suggested Maintenance Schedule for the TC-PLUS PCR Thermal Cycler

Frequency	Tasks
Daily	Check that the wells are clean and ensure the drawer opens and closes smoothly.
Monthly or after a sample spill	Clean the heating block and instrument housing.
Annually, after repairs, or after block replacement	Verify and calibrate the temperature.

Temperature Verification and Calibration of the TC-PLUS PCR Thermal Cycler

The TC-PLUS operating manual does not provide a temperature calibration procedure for end users. Access to the service settings requires the manufacturer’s engineer password. Therefore, the appropriate and safe approach is to perform independent temperature measurements and compare the results with the instrument’s specifications.

Recommended Steps:

1. Clean the wells and check that the instrument is operating normally and the heated lid closes securely.
2. Use an independent temperature probe or temperature verification system that has been calibrated and has a valid calibration certificate.
3. Take measurements at multiple positions, including the center and corners of the block, at representative temperatures such as approximately 37°C, 60°C, and 95°C.
4. For gradient-capable models, also check the temperatures across the columns. The instrument’s gradient calculation tool can help determine the expected temperature for each column for comparison with the measured results.
5. Compare the measurements with the manufacturer’s specified limits: temperature accuracy of less than ±0.2°C and block temperature uniformity of less than ±0.3°C. If the results fall outside these limits, contact an engineer authorized to access the service settings to make the necessary adjustments, then repeat the measurements to verify the results.
6. Keep a complete report that includes the instrument’s serial number, measurement date, and reference equipment details.

When multiple additional units are connected to the TC-PLUS, each unit should be measured and documented separately. The recommended minimum calibration frequency is once a year, as well as after repairs or heating block replacement.

Why Choose Professional Maintenance and Calibration Services?

Because temperature adjustments are restricted to the engineer-level service settings and the instrument contains sensitive components, using a professional service provider offers several clear benefits:

• Measurements using reference equipment with metrological traceability, preferably through a provider with an appropriate ISO/IEC 17025-accredited scope.
• Engineers familiar with the Techne product line who can thoroughly inspect the block, heated lid, fan, and power supply, and update the software according to the correct procedures.
• Comprehensive calibration reports for laboratory quality records.
• Support with replacing genuine spare parts, including heating blocks, fuses, and cables.
• Reduced instrument downtime and a lower risk of losing valuable experiments due to equipment problems.

Proper maintenance and calibration of the TC-PLUS PCR thermal cycler not only help preserve temperature accuracy but also protect the reliability of experimental results. Establish a clear maintenance schedule and use professional servicing when necessary to keep the instrument operating consistently for years to come.
