Maintenance and Calibration of the Techne TC-512 PCR

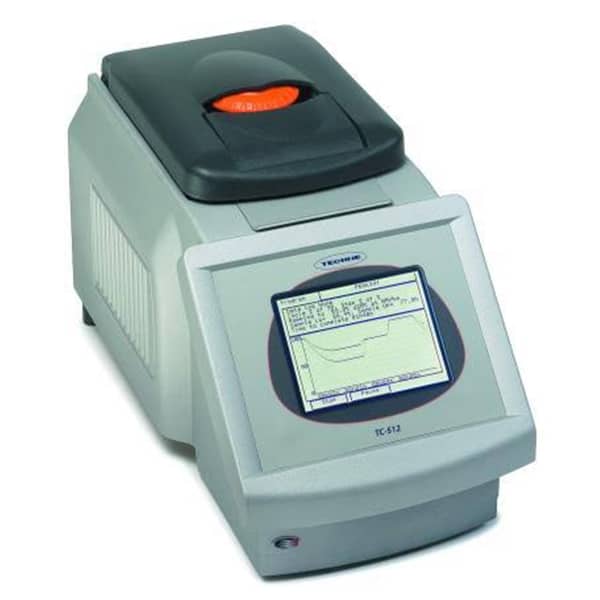

The Techne TC-512 PCR thermal cycler, distributed by Cole-Parmer, is widely used in laboratories thanks to its flexible interchangeable heating blocks, which accommodate tubes or 96-well plates, and its gradient function for optimizing primer annealing temperatures. According to the technical specifications, the instrument operates over a temperature range of 4°C to 99°C and can generate a temperature gradient of up to 30°C across the block. These features make regular maintenance and calibration of the TC-512 PCR thermal cycler essential for achieving consistent and reliable PCR results.

Why Is Regular Maintenance and Calibration of the TC-512 PCR Thermal Cycler Necessary?

PCR thermal cyclers do not always show obvious signs of malfunction. The instrument may power on and run a program normally, while the actual temperature inside the reaction tubes has already drifted from the setpoint. With the TC-512, if you use the gradient function to determine the optimal annealing temperature, even a temperature difference of just a few degrees between columns can lead to the wrong conditions being selected, affecting the subsequent steps of the entire workflow.
You may also be interested in: Laboratory Equipment Calibration
Three main factors can cause the instrument’s performance to deteriorate:

• Dust and sample residue in the wells can reduce heat transfer efficiency.
• Temperature sensors and heating/cooling components can gradually drift over time.
• The pressure mechanism of the heated lid may wear out or become misaligned, causing sample evaporation or condensation on the inside of the tube caps.

Maintenance addresses the first and third issues, while calibration helps identify and correct the second.

Benefits of Following a Regular Maintenance and Calibration Schedule

• Consistent PCR results across runs, even when multiple users share the same instrument.
• Reduced waste of valuable samples and reagents, as well as less time spent repeating experiments.
• Early detection of heating block wear, allowing replacement to be planned in advance.
• Equipment maintenance and calibration records to support internal quality assessments and external inspections.
• Extended instrument service life and reduced the risk of unexpected, costly repairs.

Suggested maintenance schedule (check against the instrument’s operating manual):

• Daily: Check that the wells are clean, use the correct type of tubes or plates, and prevent liquids from entering the instrument.
• Monthly or immediately after a sample spill: Clean the wells and the surface of the heated lid.
• Annually, after repairs, or after replacing the block: Perform a comprehensive temperature check and calibration.

Temperature Testing and Calibration Procedure for the TC-512 PCR Thermal Cycler

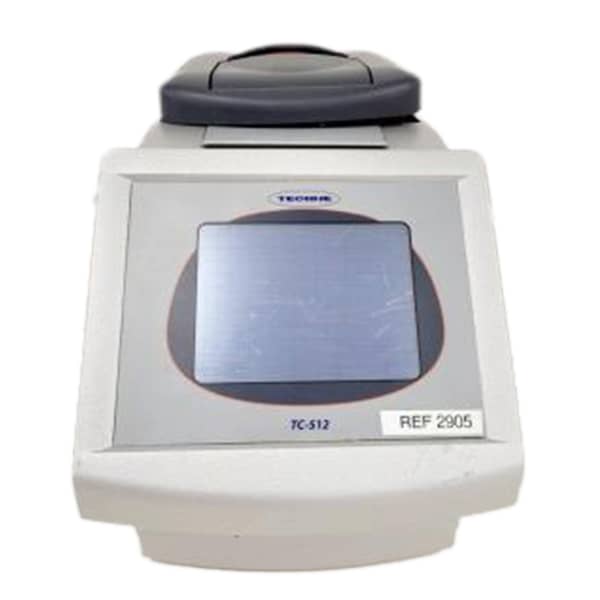

Before taking measurements, disconnect the power supply and allow the block and lid to cool completely. Then clean the wells using a cotton swab moistened with isopropanol or ethanol. Do not use acetone or abrasive cleaning agents. These are general guidelines for many Techne instrument models; you should still consult the specific documentation for the TC-512.

Standard measurement steps:

• Use an independent temperature probe or temperature verification system that has been calibrated and has a valid calibration certificate. Do not rely solely on the temperature displayed by the instrument itself.
• Take measurements at multiple positions, including the center of the block, all four corners, and the first and last columns, to assess temperature accuracy and uniformity.
• Check representative temperature points, such as approximately 37°C, 60°C, and 95°C.
• When testing the gradient function, also measure the temperature difference between the first and last columns and compare the results with the programmed settings.
• Compare the measurements with the manufacturer’s specified tolerances. If the results fall outside the acceptable limits, have a qualified engineer make adjustments through the service mode and repeat the measurements to verify the results.
• Keep a complete report that includes the instrument’s serial number, measurement date, operator’s name, and details of the reference measurement equipment.

Important note: Most manufacturers do not allow users to adjust the instrument’s internal calibration parameters themselves. Temperature verification may be performed on-site, but adjustments to correct deviations should be handled by a qualified service engineer.

Why Choose Professional Maintenance and Calibration Services for the TC-512?

The interchangeable heating blocks and gradient function require technicians to have a thorough understanding of the instrument’s design and operation. Professional service provides the following benefits:

• Reference measurement equipment with traceable calibration, ideally calibrated by a laboratory accredited to ISO/IEC 17025 for temperature measurements.
• Engineers familiar with the Techne product line who can thoroughly inspect the heating block, lid, fan, and power supply.
• Clear, detailed reports suitable for laboratory quality records.
• Support with genuine spare parts and troubleshooting when the instrument malfunctions.
• Less time spent on equipment issues, allowing research teams to focus on their work.

If your laboratory uses the Techne TC-512 PCR thermal cycler, schedule regular maintenance and calibration to help keep the instrument operating reliably. This is an important step toward ensuring accurate and reproducible PCR results. Contact a reputable service provider today for advice on a maintenance plan tailored to your laboratory’s actual needs.
